Description
Main features
Use
Road performance, all-road, endurance, light gravel and long-distance rides.
Versatility
Designed for cyclists seeking performance both on and off-road.
Weight of the pair
1515 g on average (+/- 3%), tubeless tape and valves included, HG freehub body version.
Optimized aerodynamic tire size
27 mm.
Tire compatibility
For use exclusively with tubeless tires, designed for tires larger than 28 mm.
test standard
Tested and validated according to ENVE gravel standards.
Construction
Rays
Sapim CX-Ray J-Bend.
spoke nuts
Alpina Nylock Brass.
Hubs
ENVE INNERDRIVE™ – Foundation.
Hub spacing
Front: 12×100 mm
Rear: 12×142 mm
Ray tension
120 kgf.
Braking
Centerlock disc mount.

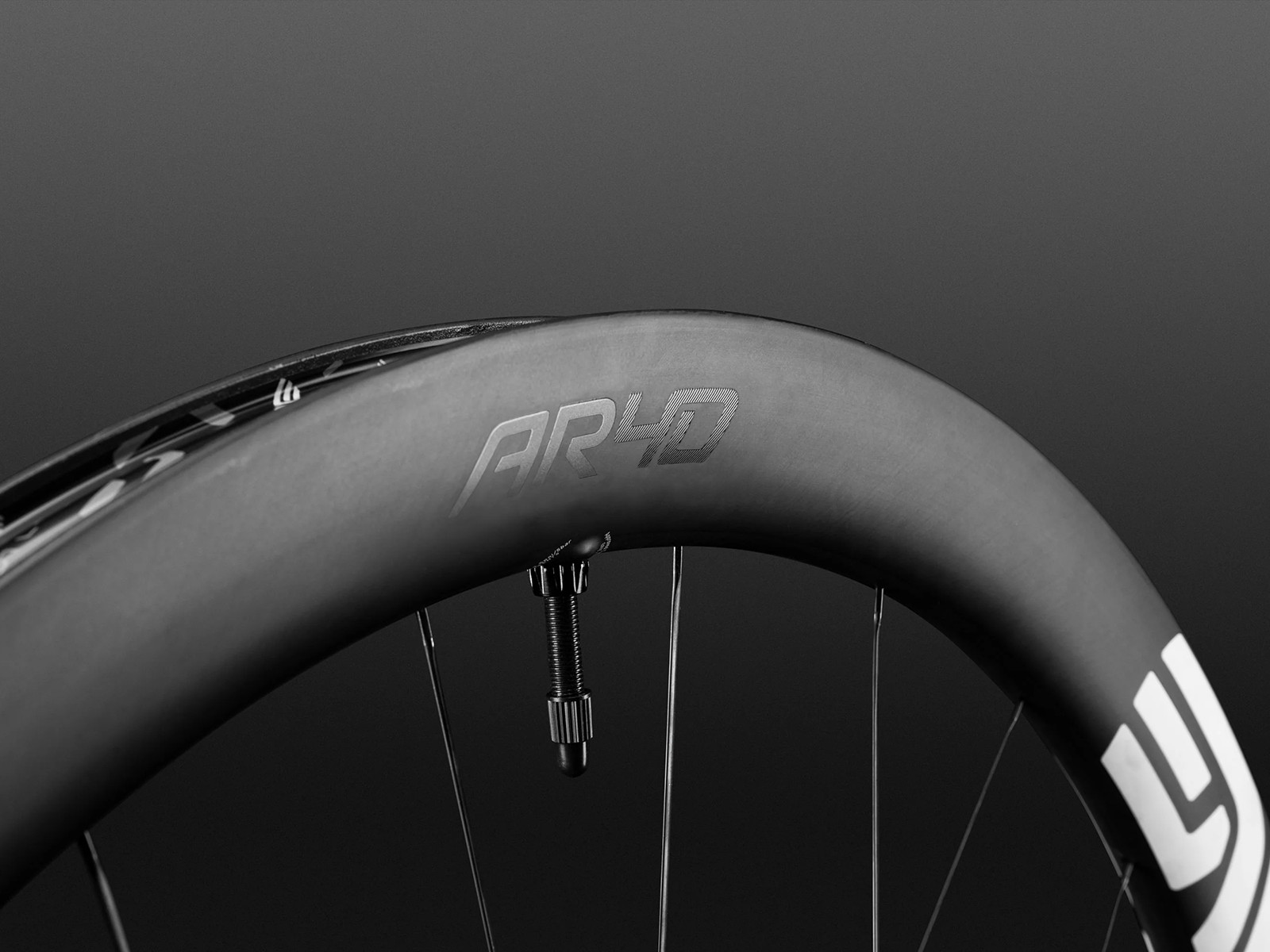

Rim dimensions
Effective rim diameter (ERD)
579 mm (+/- 3 mm).
Internal width
25 mm.
Wall width
3.6 mm.
Depth
40 mm.
Number of holes
24 holes.
Anti-pinch technology
Wide Hookless Bead with wide hookless profile.
Tubeless tape recommended
29 mm.
Tubeless valve length
61 mm.
Detailed weights
Front rim weight
425 g.
Rear rim weight
425 g.
Front wheel weight
690 g.
Rear wheel weight
825 g.
Aerodynamic
Wind tunnel development
Tested and developed in the Mercedes-Benz Formula One Wind Tunnel.
ENVE Approach
Development and validation of wheels mounted on bicycles, at real speeds between 32 km/h and 48 km/h, for concrete aerodynamic performance on the road.
Objective
Improve efficiency, stability and control regardless of wind conditions.
Tubeless technology
Main advantages
Reduced rolling resistance, fewer punctures and optimized rolling pressure.
Hookless profile
The hookless/straight-sidewall design ensures precise tolerance at the tire seat to improve tubeless performance.
Performance
Provides greater comfort, more traction and better overall performance.
Protection and durability
Wide Hookless Bead
Patented ENVE technology dissipates impact energy and reduces the risk of pinch flats and punctures on major impacts.
Molded Spoke Holes
The spoke and valve holes are molded and not drilled, allowing the continuity of the carbon fibers to be maintained for a lighter and stronger rim.
Benefits
Increased strength, better spoke tension retention, reduced risk of pull-out and very low need for truing.

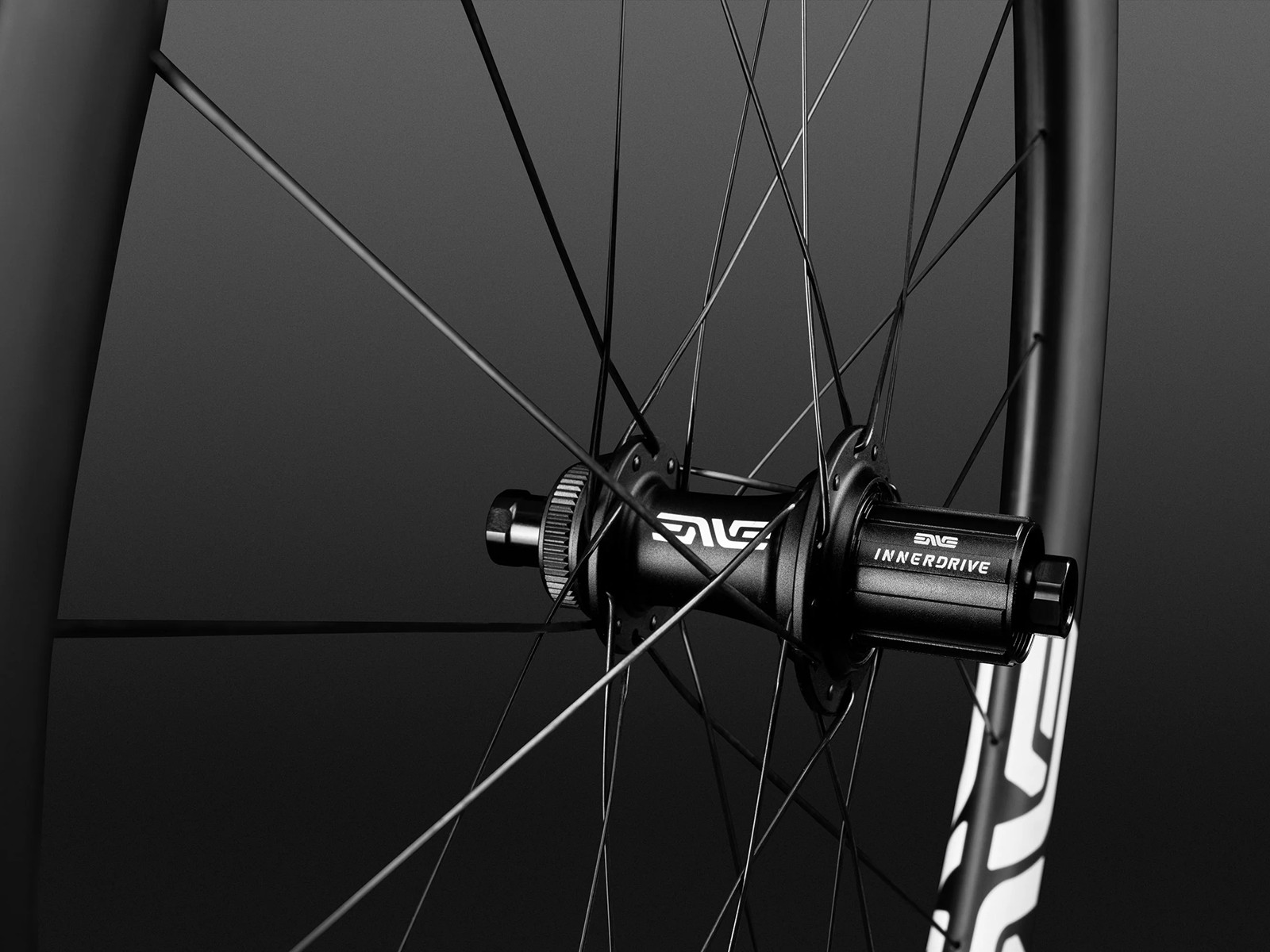

ENVE INNERDRIVE™ Hubs
Ratchet system
Oversized 42mm ratchet system entirely designed by ENVE.
Functioning
Oversized steel pawls are positioned above the bearings to reduce stress on the shaft and improve engagement.
Benefits
Extended bearing life, reduced friction, automatic preload, low maintenance and simplified upkeep.
