Description
Technologies & Innovations

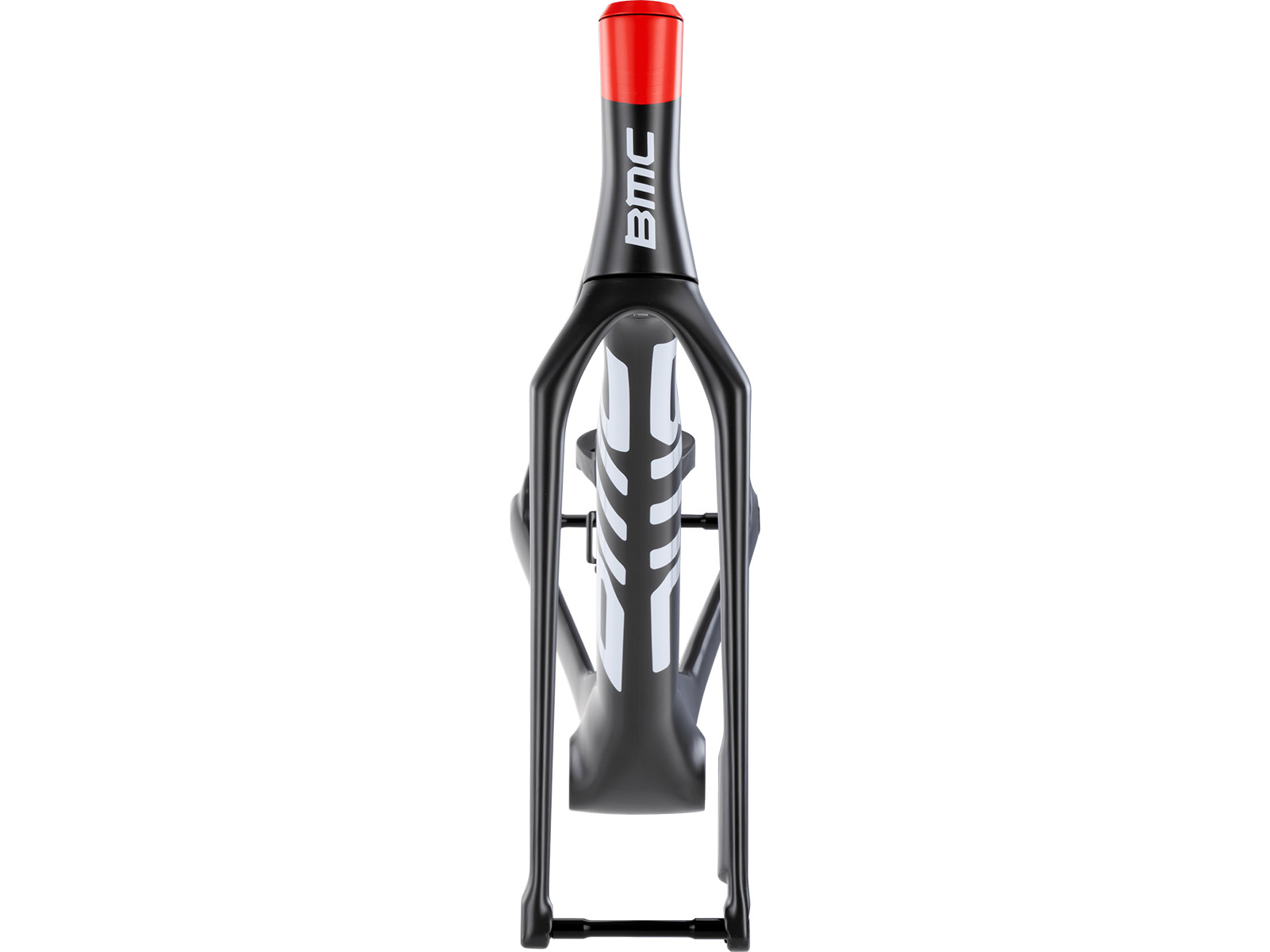

Halo Fork
- Widened legs forming an ultra-wide and distinctive front
- Reduction of turbulence around the frame
- Reduction of aerodynamic losses
- More stable speed and usable at high intensity
Cockpit ICS – Integrated Cockpit System
- Complete internal cable routing (ICS Technology Stealth Cable Routing)
- Minimalist and clean aesthetic
- Reduction of aerodynamic drag
- Swiss design and engineering

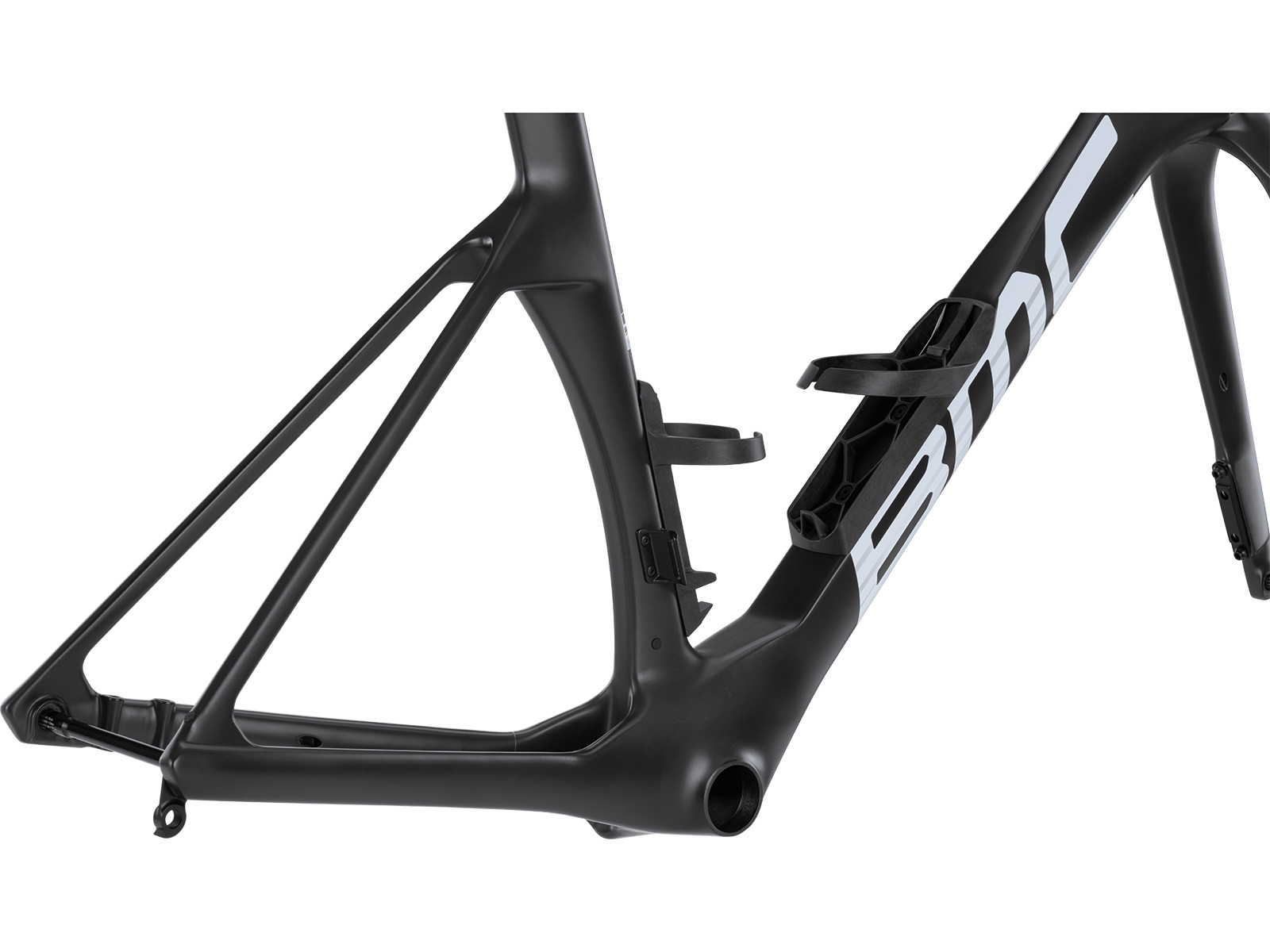

“Mariana” bottom bracket
- Deepest bottom bracket shell developed by BMC on a road bike
- Optimizing airflow
- Surface area modified for aerodynamic improvement
- Compliant with and approved by the UCI
R 01 Premium Carbon Seatpost
- Slim, deep and flexible profile
- Lightweight construction
- Tightening is more accessible and simpler to maintain
- Compatible with integrated race number holder
- Offset: 0 mm sizes 47-51 / 10 mm sizes 54-61

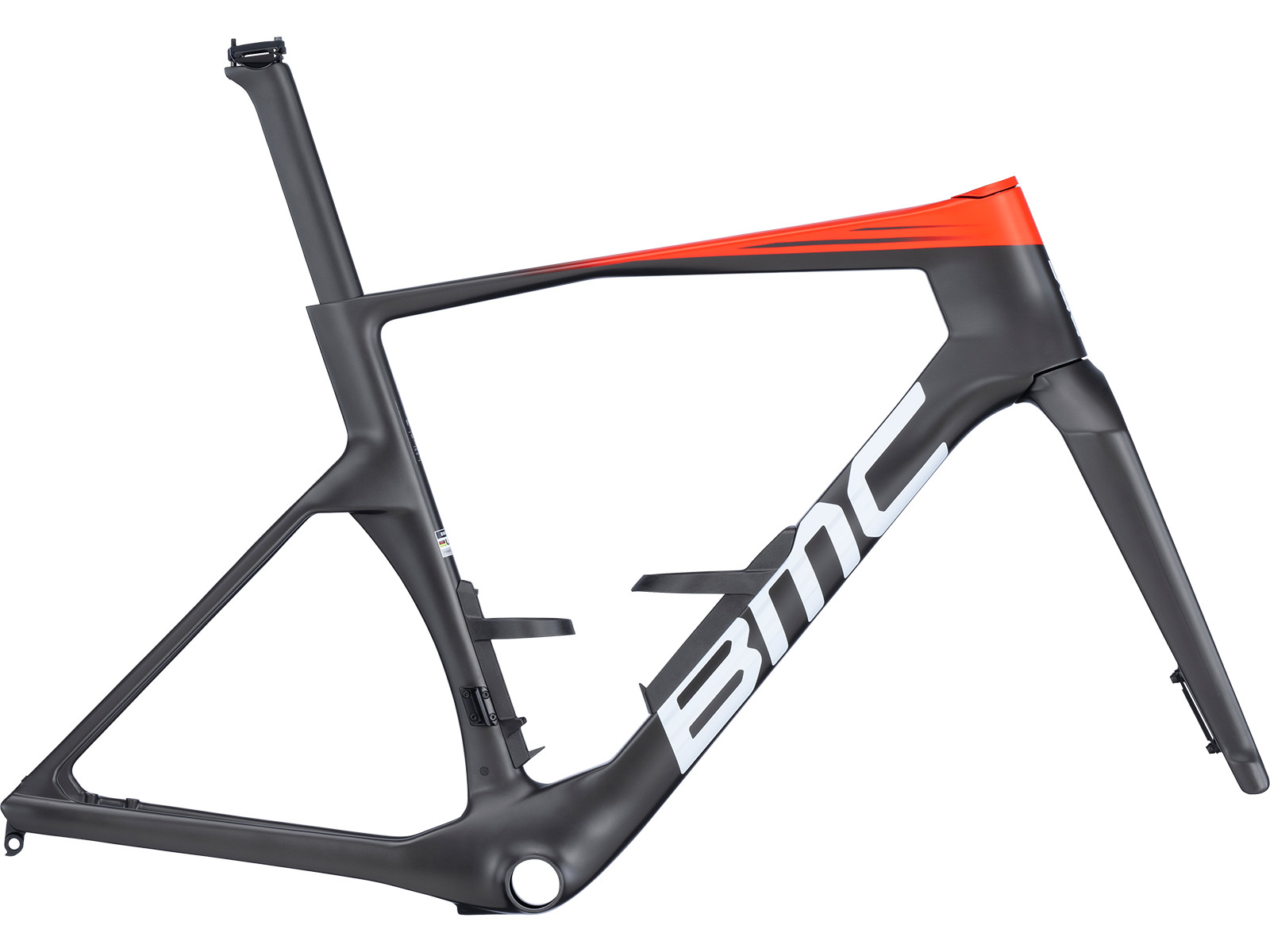

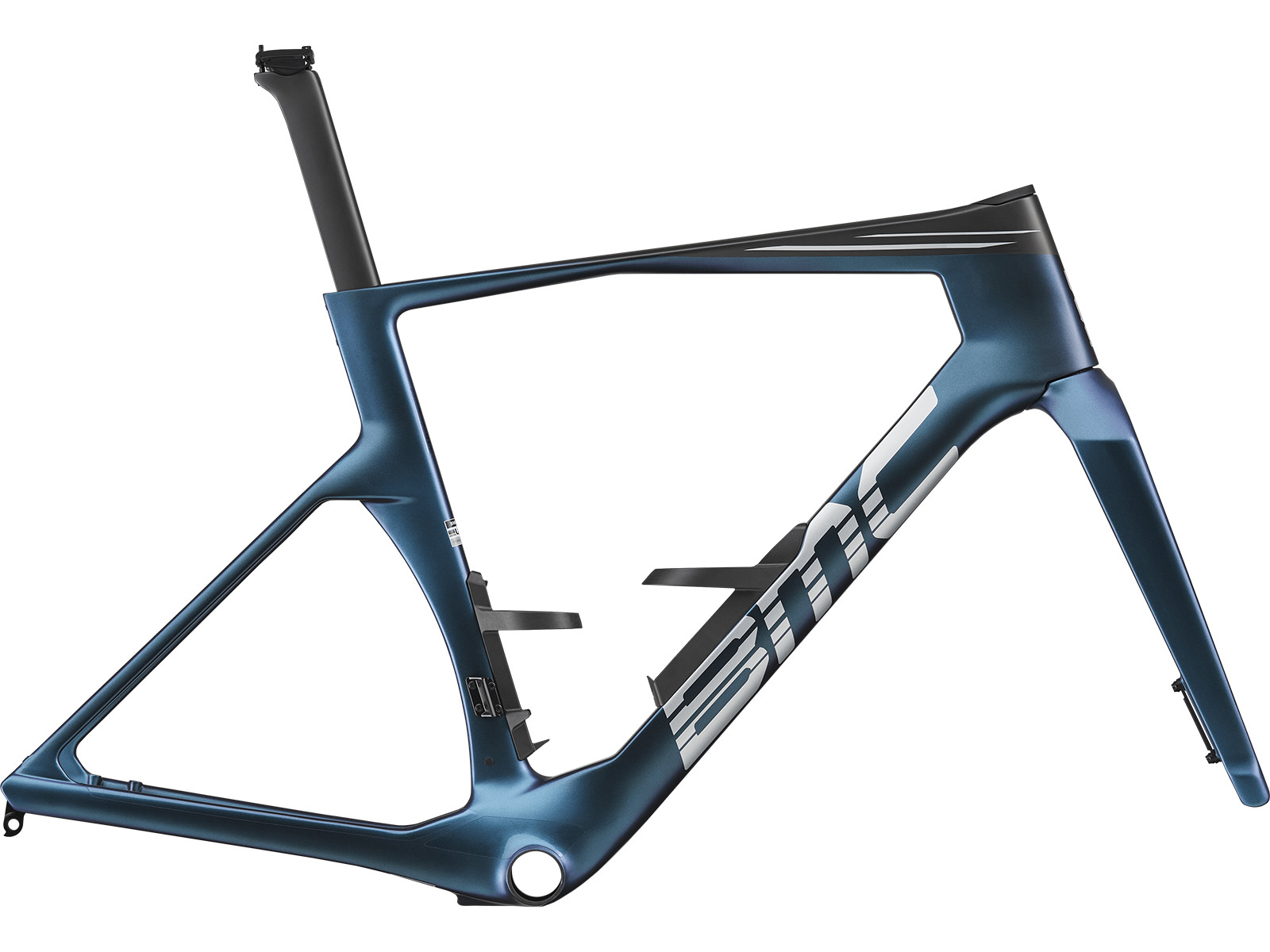

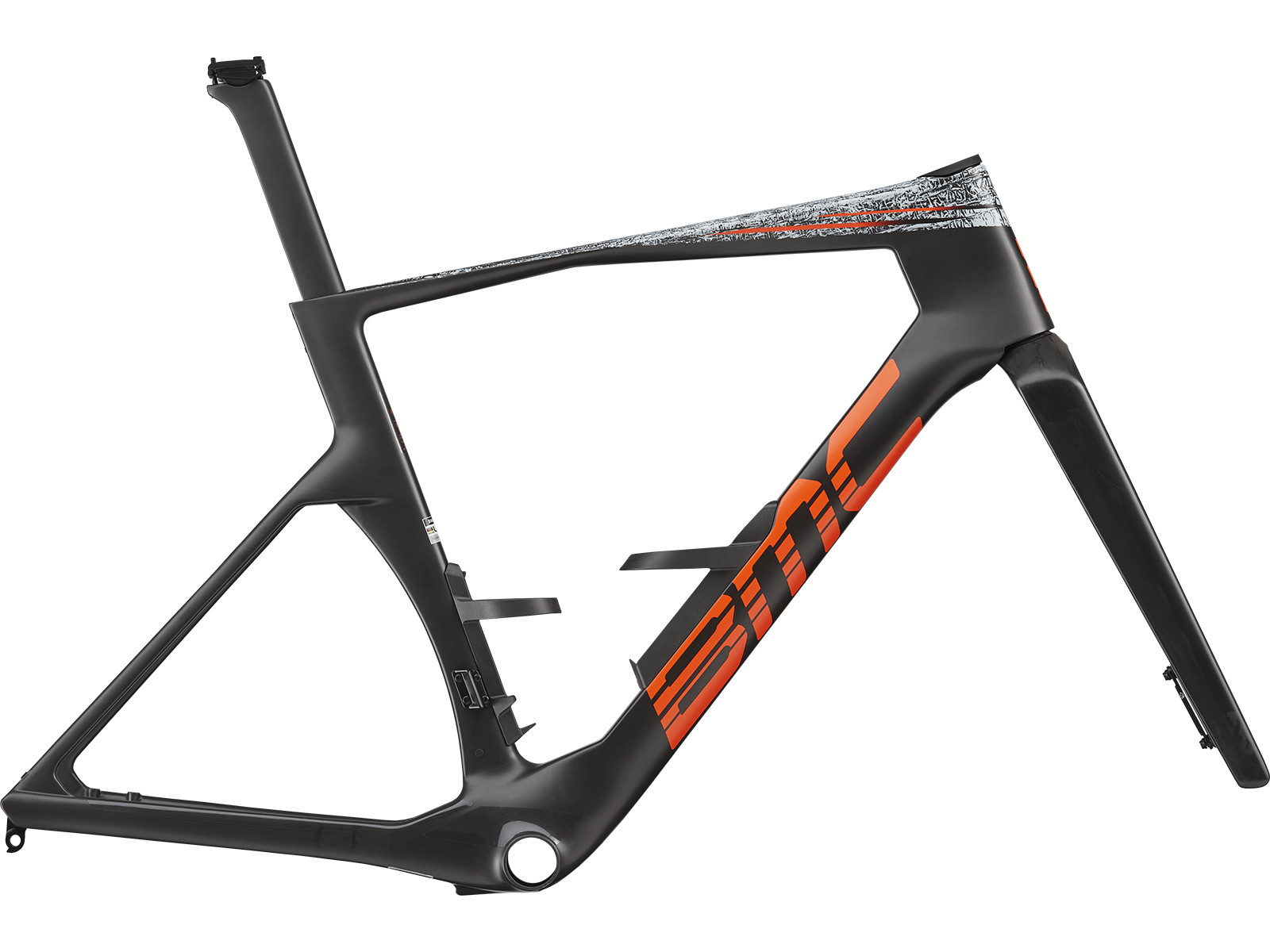

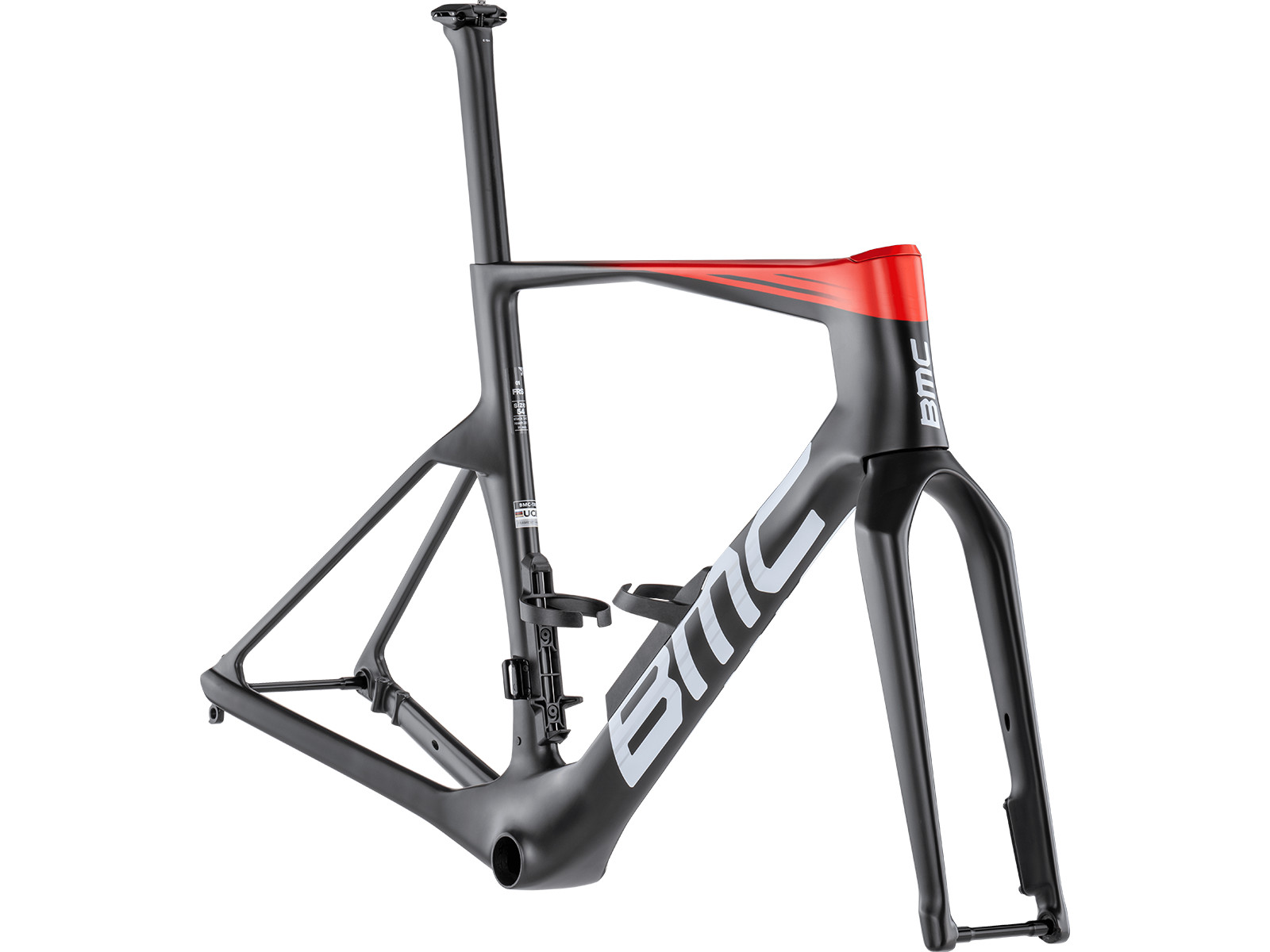

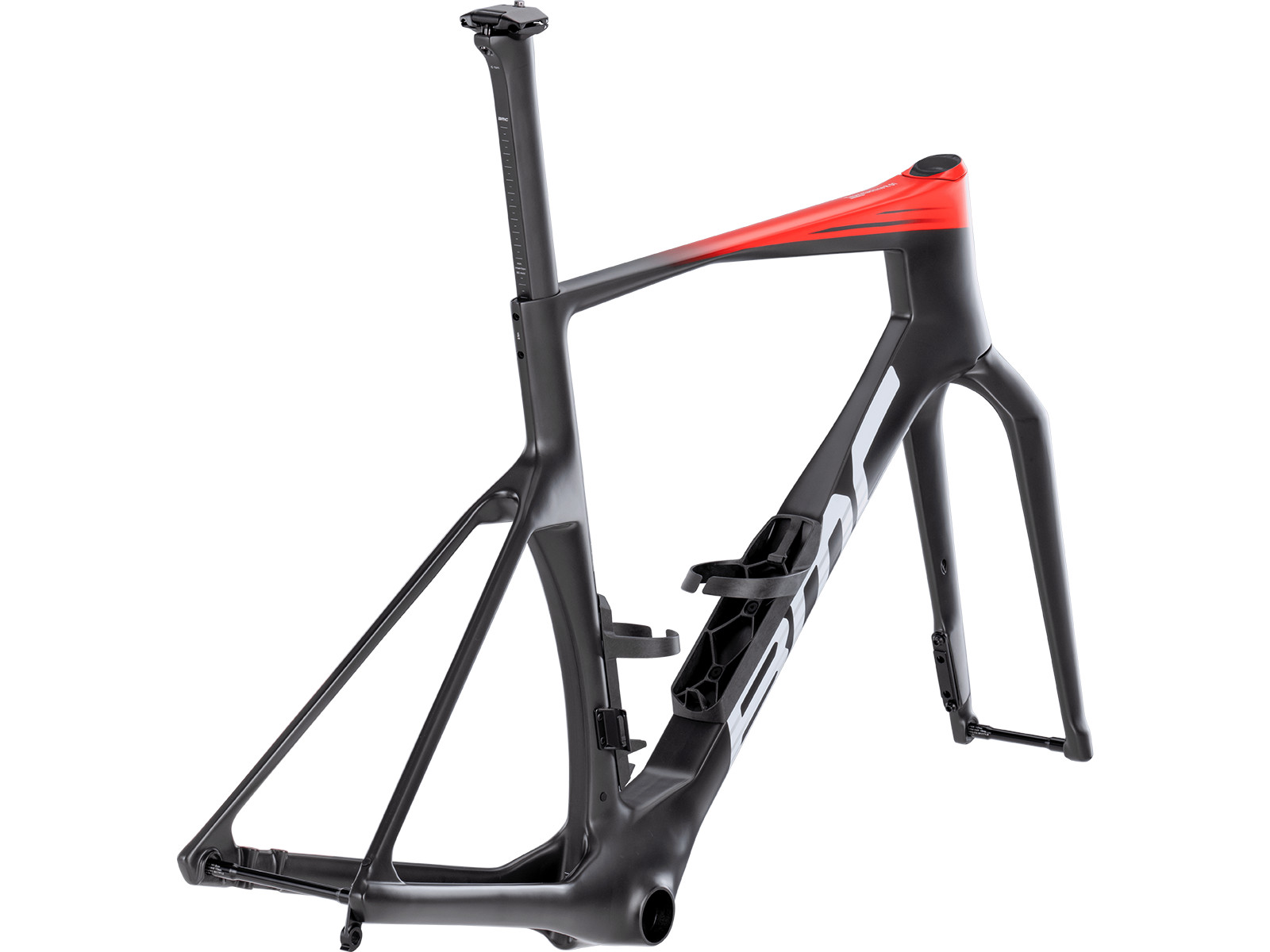

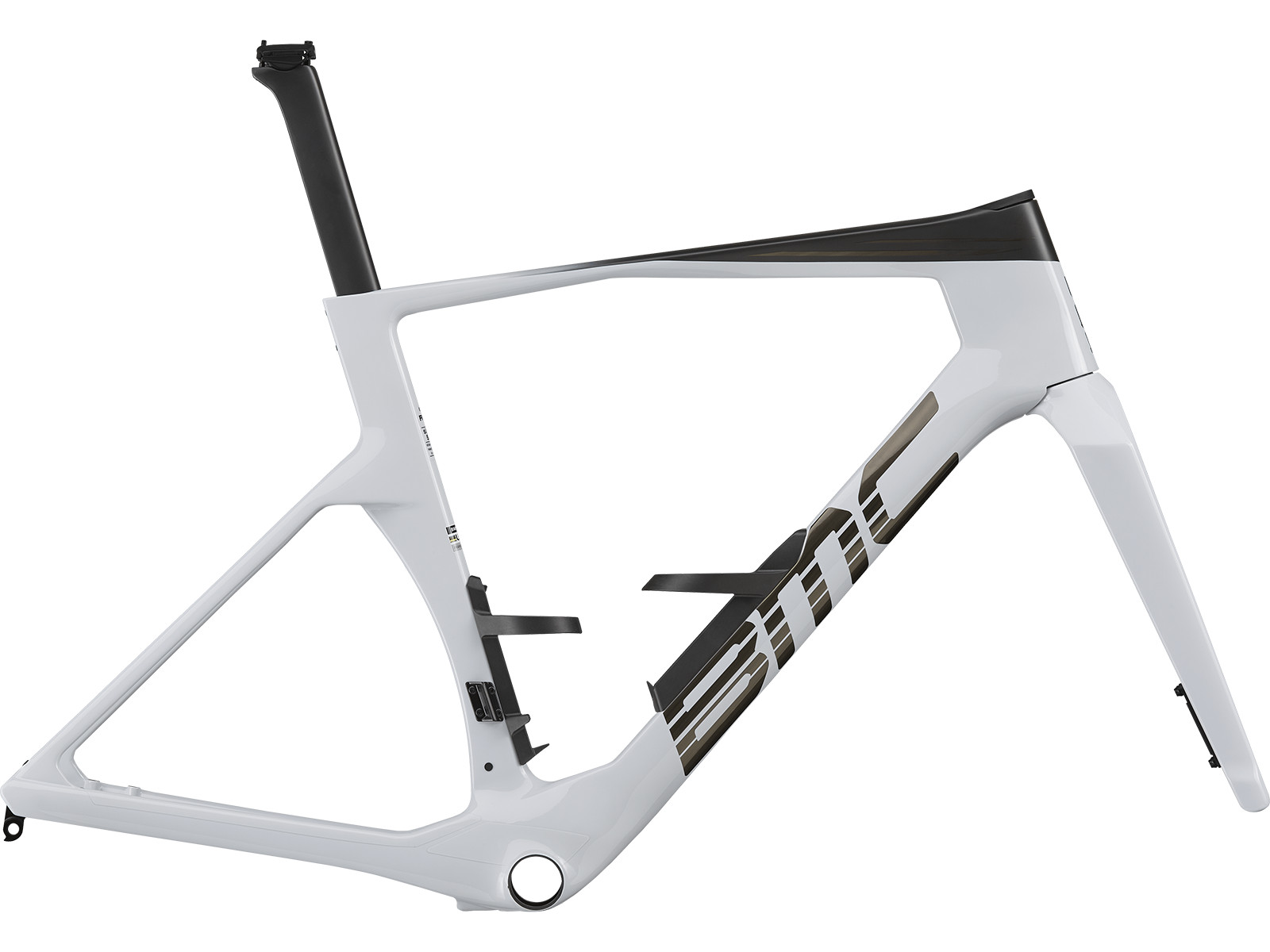

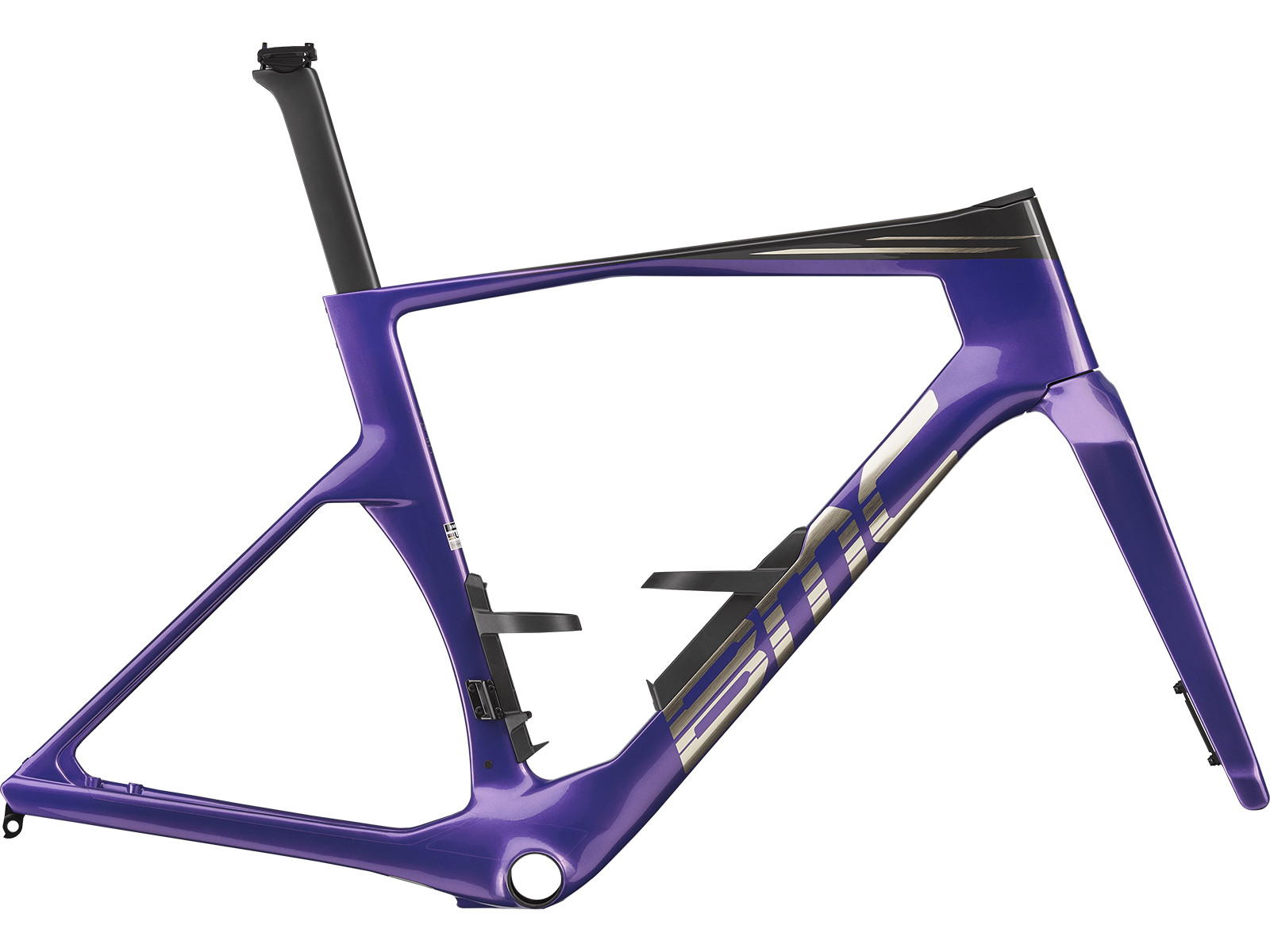

Frame kit
- Frame: Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

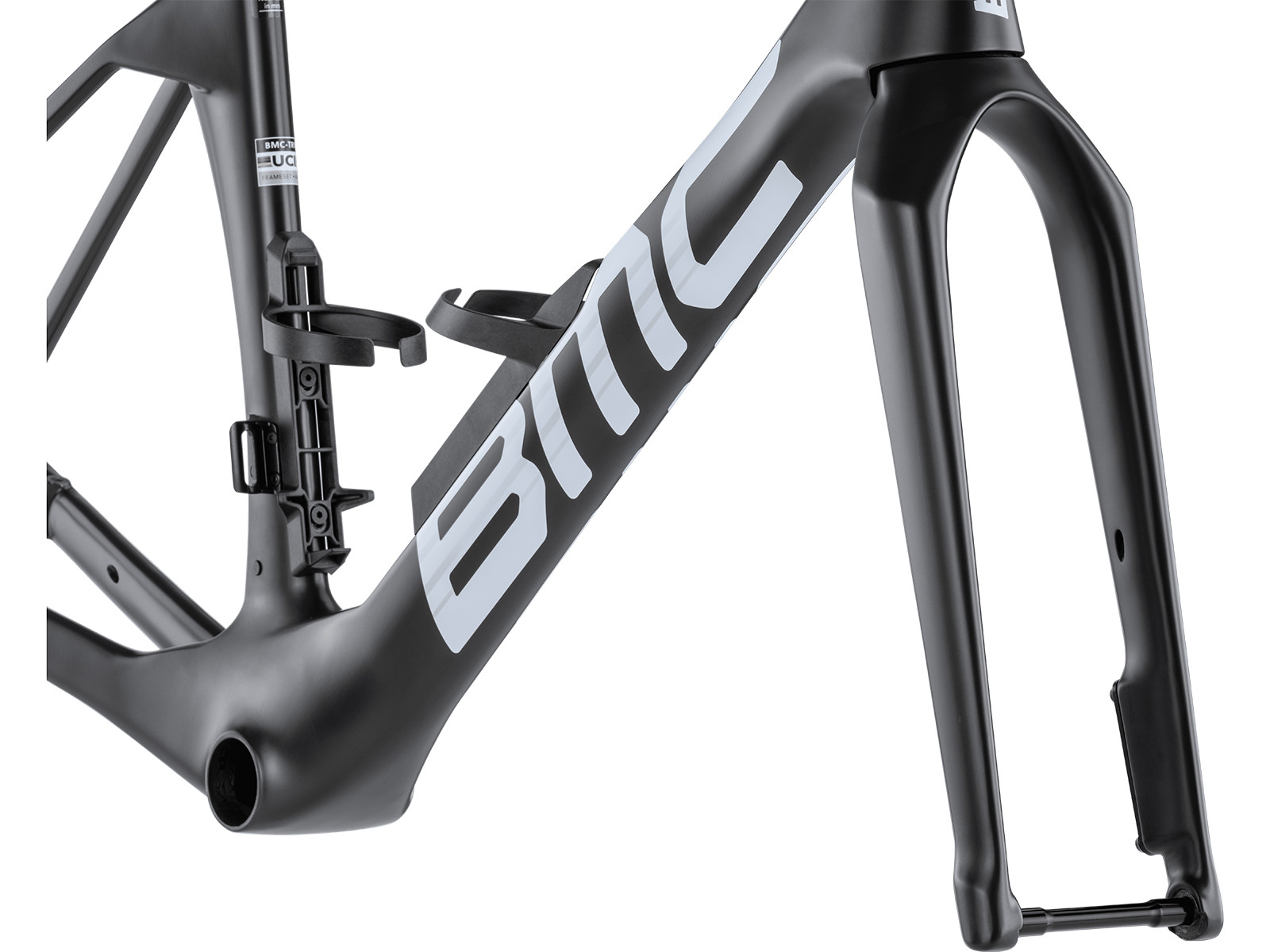

- Fork: Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Compatibility & Transmission
- Front derailleur: Riveted bracket for 2x drivetrain – 44.5 mm chainline
- Rear derailleur: Compatible with Shimano Direct Mount + Shimano or SRAM Direct Attachment
- Bottom bracket: Press-Fit 86.5 mm Road
- Disc compatibility: 160 mm front | 140 mm or 160 mm rear
Accessories included
- Aerocore bottle cages
- Shimano Direct Mount derailleur hanger
- Classic SRAM / Shimano dropout
- Upper ICS cones, top and bottom
- 3 spacers of 10 mm
- 2 spacers of 3 mm
Additional information
- Tire clearance: up to 30 mm measured
- Weight: 1810 g, size 54 with accessories
- ASTM Classification: Level 1
- System weight limit: 110 kg
