Description
Framework and design
Frame

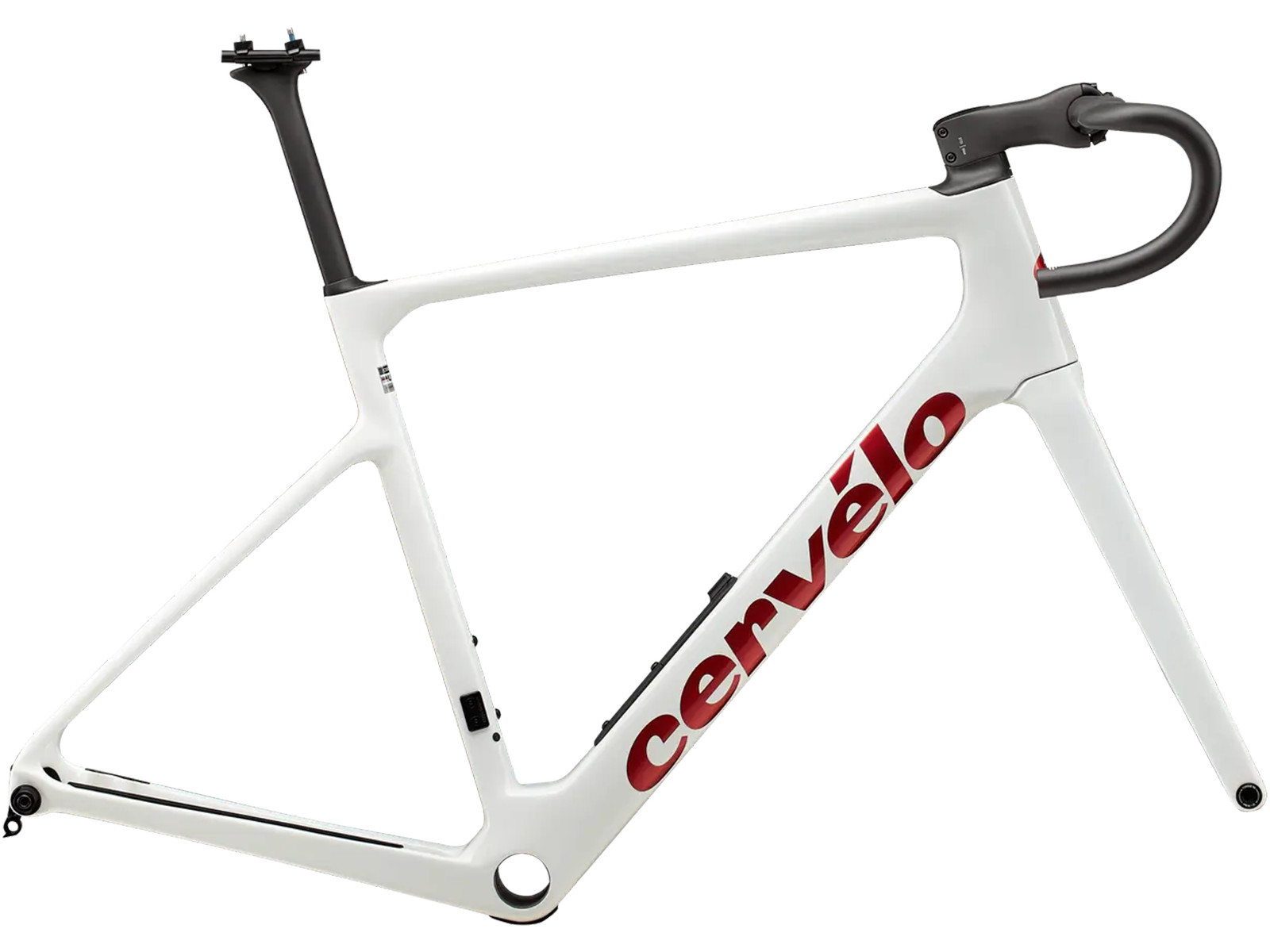

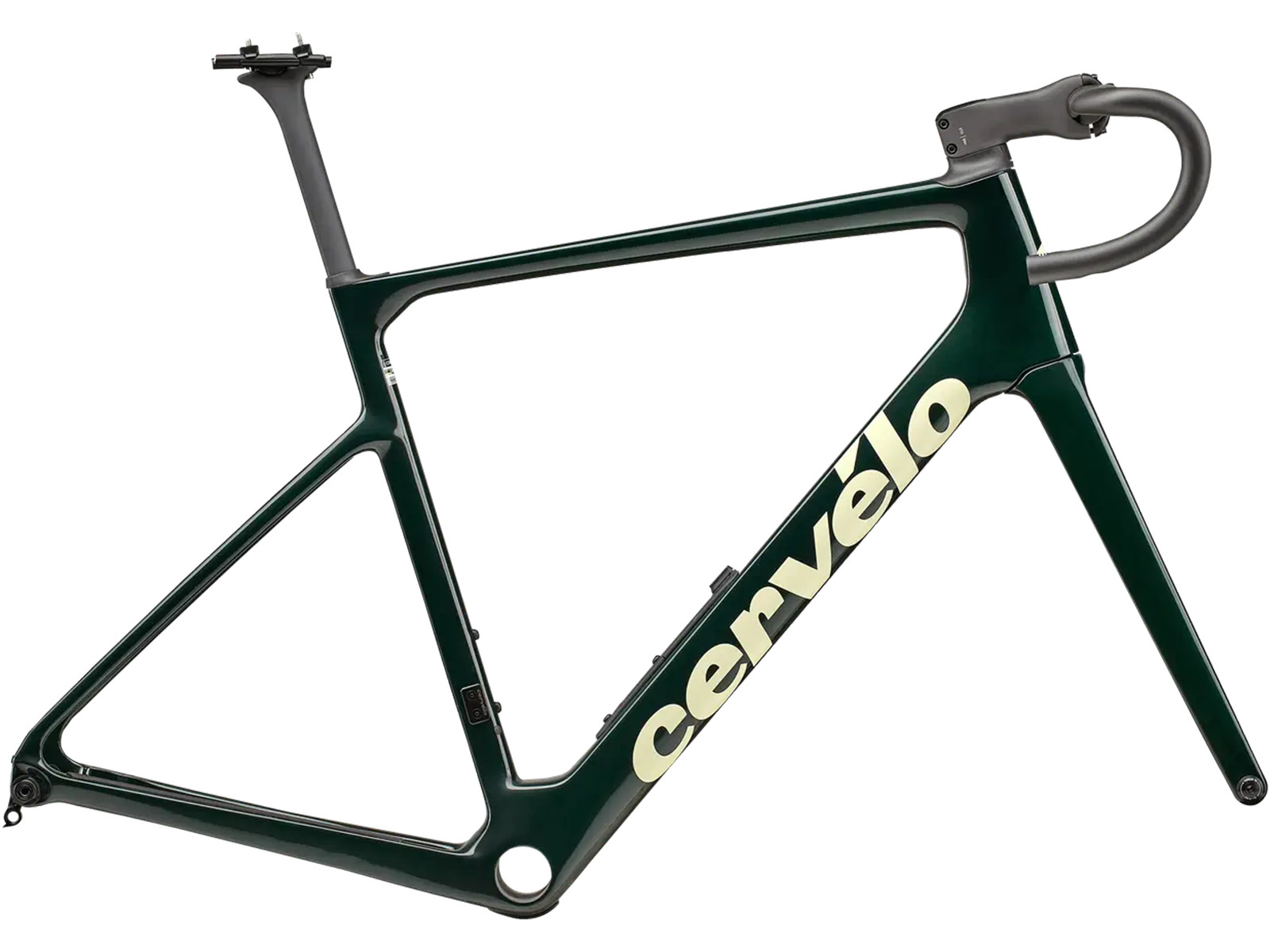

The Cervélo Caledonia-5 carbon endurance road frame is designed for long distances and fast rides. Its geometry is comfort-oriented while maintaining a ride feel close to that of a race bike. Lowered seat stays improve vertical compliance, and the downtube is stiffer to maintain responsiveness.
Fork
Cervélo All-Carbon Caledonia-5 Fork with tapered steerer, designed for precise steering and aerodynamic integration consistent with the frame.
Aerodynamics
Fully internal cable routing and optimized tube shapes to improve air penetration and reduce wind resistance on long rides.
Comfort and upgrades
Designed for long rides, fast paces, and rough roads. New headset top cover allows for easy cockpit adjustment without complete disassembly.
Integrated storage
Storage within the frame
The Caledonia-5 features an internal storage system for carrying an inner tube, a small multi-tool, and a CO2 cartridge. The access hatch is easily removable thanks to a locking lever that can be operated even with gloves.
Components included in the frame kit
Steering game
FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°.
Handlebar
Cervélo HB13 Carbon, 31.8 mm clamp.
Handlebar width by size
- Size 48: 36 cm
- Size 51: 38 cm
- Size 54: 40 cm
- Size 56: 40 cm
- Size 58: 42 cm
- Size 61: 42 cm
Gallows
Cervélo ST31 Carbon.
Stem length by size
- Size 48: 80 mm
- Size 51: 90 mm
- Size 54: 100 mm
- Size 56: 100 mm
- Size 58: 110 mm
- Size 61: 110 mm
Seat post
Cervélo SP24 Carbon.
Seatpost offset by size
- Size 48: 0 mm
- Size 51: 0 mm
- Size 54: 0 mm
- Size 56: 0 mm
- Size 58: 15 mm
- Size 61: 15 mm
Cross axes
- Front axle: Cervélo Aero Thru Axle Front, M12x1.5 mm, length 127 mm
- Rear axle: Cervélo Aero Thru Axle Rear, M12x1.5 mm, length 170.5 mm
Accessories included
- Removable supports for Cervélo mudguards
- Cervélo front bracket for speedometer / accessory 810
- Rear accessory support for Cervelo
- Cervélo internal storage pockets – inner tube storage
- Cervélo internal storage pockets – repair kit storage (puncture)
- Two Arundel Mandible carbon bottle cages with a Matte UD finish

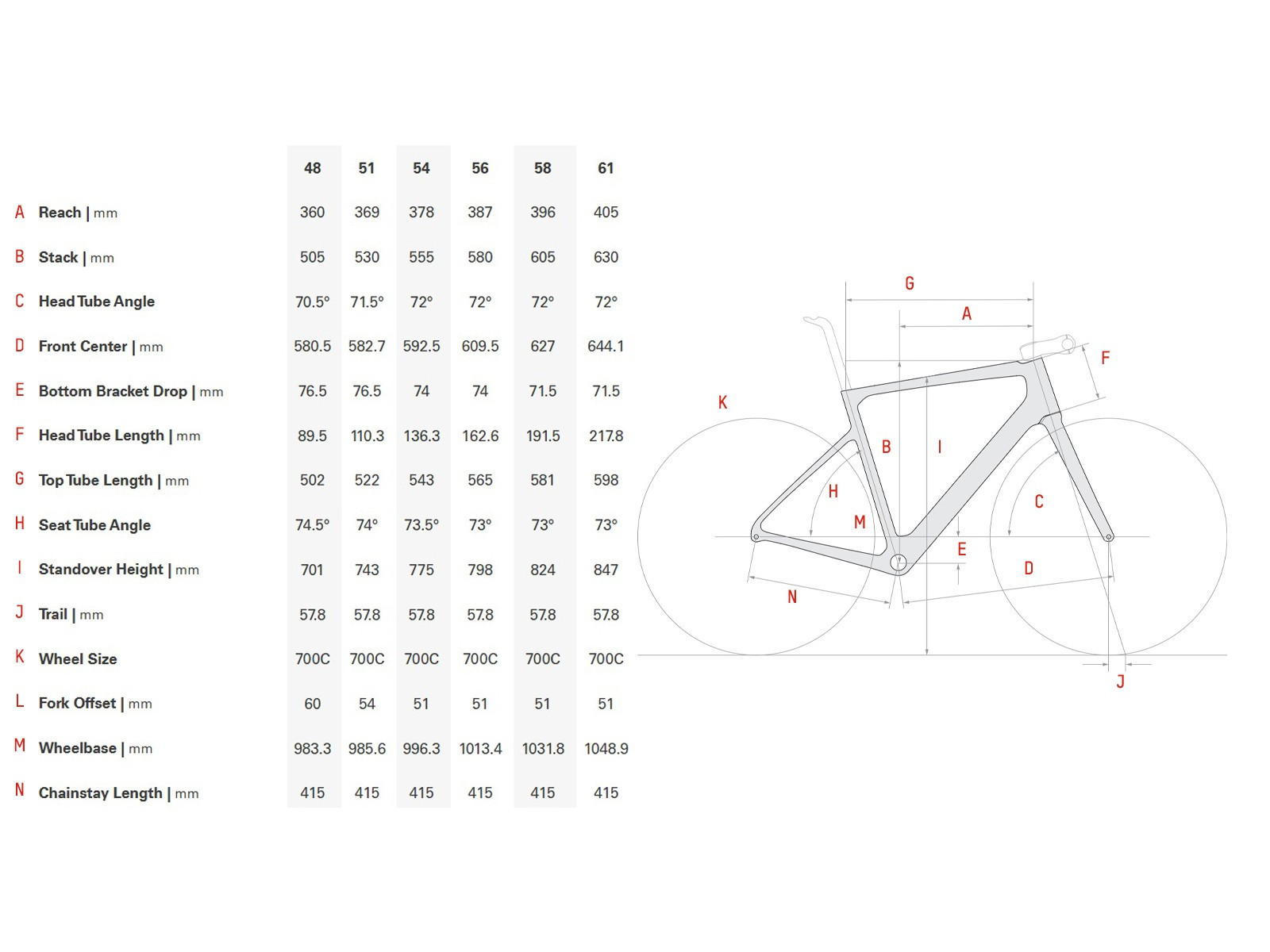

Dimensions and compatibility

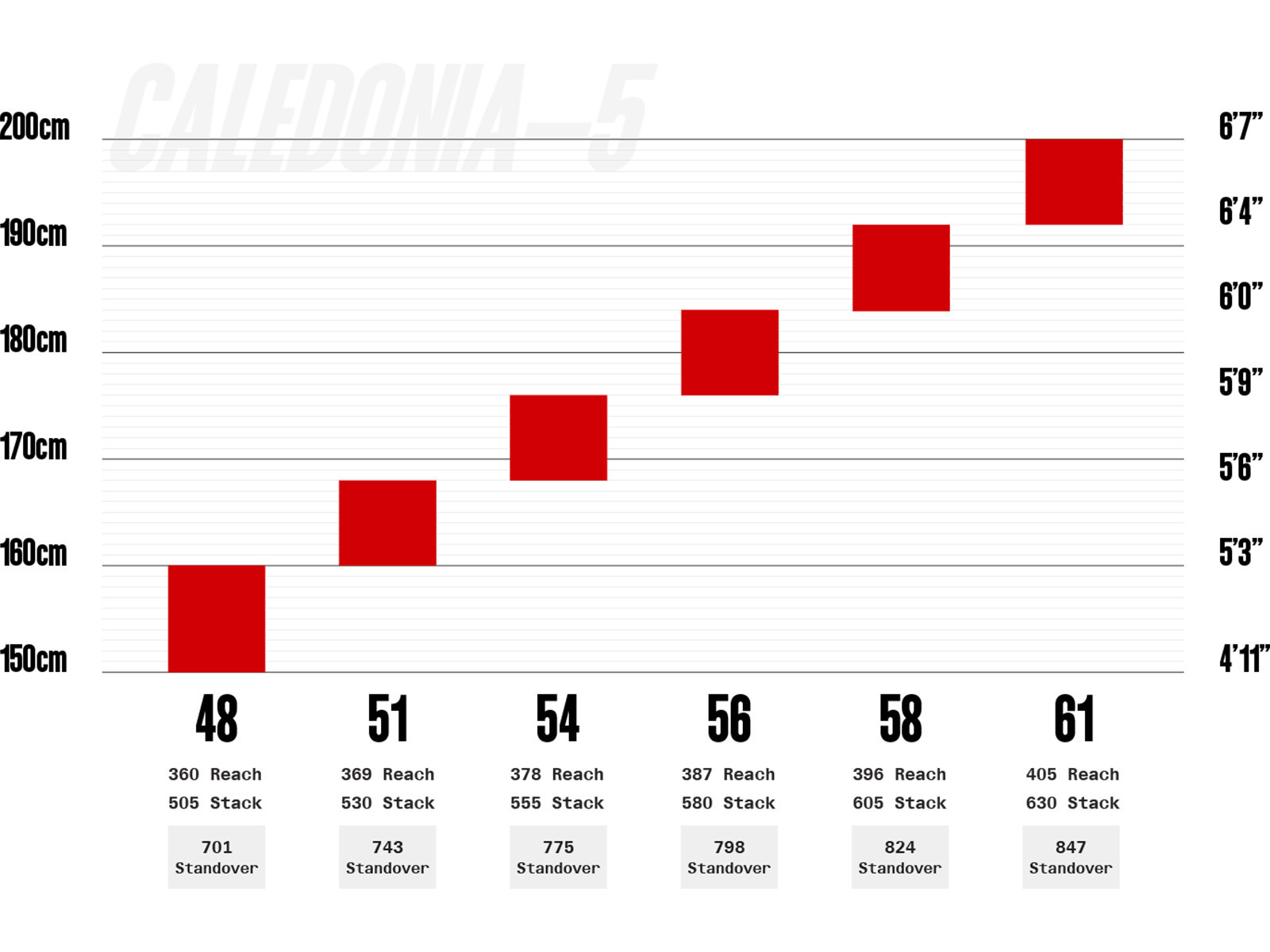

Available sizes
48cm, 51cm, 54cm, 56cm, 58cm, 61cm.
Maximum tire width
Tire compatibility up to 36 mm.
Usage and positioning
This high-end endurance road frameset is designed for long, fast rides, long distances, and varied terrain. It combines comfort, aerodynamic efficiency, and the dynamic handling typical of Cervélo racing bikes, with a design built to last.
